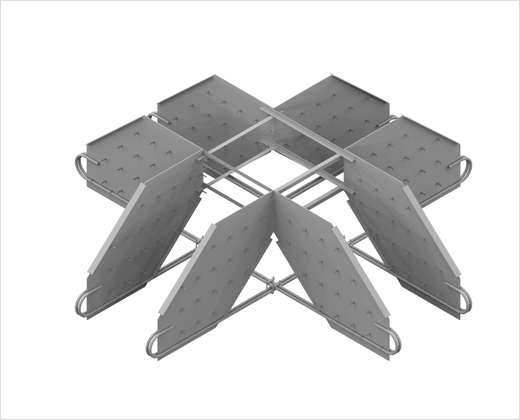

Foundation Reinforcement Arch Plate - Modular Type
Abstract
-
- ·Significantly reduces foundation thickness.
- ·Revolutionizes the structural concept of foundations.
- ·Reduces the foundation thickness of apartment parking structures.
- ·Reduces the thickness of heavy mat foundations in high-rise buildings.
- ·Shortens underground construction duration.
- ·Reduces construction costs.
-

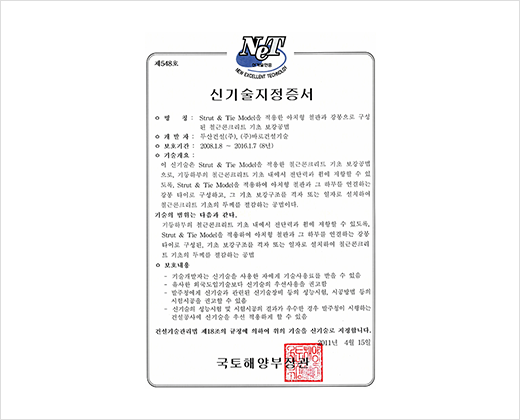

- ·Certified as New Construction Technology No. 548 by the Ministry of Land, Transport and Maritime Affairs
- ·New-technology protection period extended by 8 years
- ·Domestic patent secured and PCT application filed overseas
Structural Concept

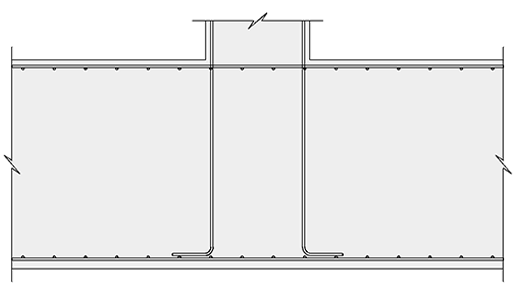

Innovation in Foundation Structural Concept

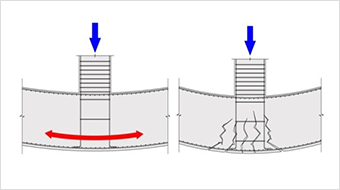

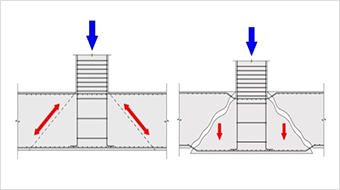

Structural mechanism of foundation reinforcement
-
Flexural resistance mechanism ▶ Determines foundation reinforcement -
Shear resistance mechanism ▶ Determines foundation thickness -

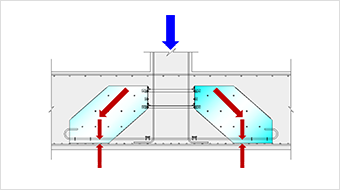

Load path of FRAP using STM

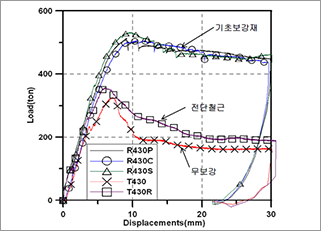

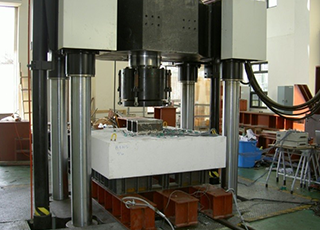

Structural test results of foundation reinforcement
-
Two-way specimen fabrication -
-
Two-way failure testing -
-
Foundation reinforcement improves foundation
performance by 1.6 times. Foundation reinforcement
increases energy absorption capacity
(advantageous for seismic performance).
Applicability

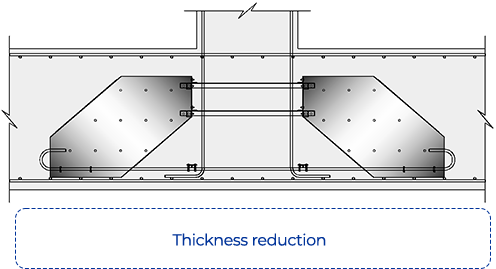

Significant Reduction in Foundation Thickness
This construction method allows a major reduction in foundation thickness by installing foundation reinforcement members that enable strut–tie action within the foundation, efficiently distributing the building loads.
- ㆍReduces foundation thickness by 20~30%
- ㆍReducesconcrete volume
- ㆍLowers construction costs by 10~30%
- ㆍShortens construction duration by reducing excavation and earth-retaining work
- ㆍPrevents ground settlement
| Foundation type | Before change (RC foundation) | Before & after (with foundation reinforcement applied) | Reduction rate (%) | |
| Thickness (mm) | Thickness (mm) | Type | ||
| Parking structure foundation | 800 | 600 | Low-rise | 20 ~30% |
| 900 | 650 | Low-rise | ||
| 1000 | 750 | Low-rise | ||
| High-rise building foundation | 1200 | 900 | High-rise | 20 ~30% |
| 1500 | 1200 | High-rise | ||
| 1800 | 1400 | High-rise | ||
| 2000 | 1500 | High-rise | ||
| 2500 | 2000 | High-rise | ||
| 3000 | 2400 | High-rise | ||
| 3500 | 2800 | High-rise | ||
| 4000 | 3000 | High-rise | ||

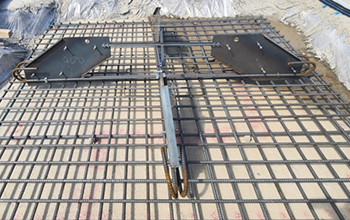

For Apartment Parking Structures
Features
- ·Capable of reducing the thickness of parking structure foundations
- ·Expands the daily concrete-pouring range, reducing construction joints
- ·Significantly shortens excavation time, especially in rock conditions
- ·Able to shorten the overall underground construction period
Maximizing the effect of shortening the construction period by reducing construction joints

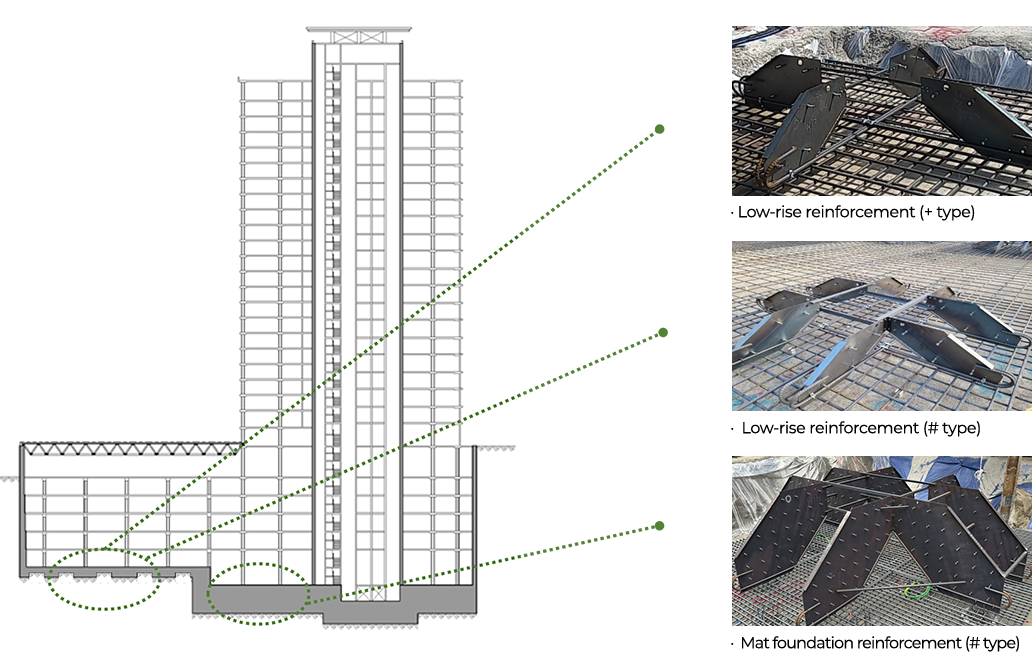

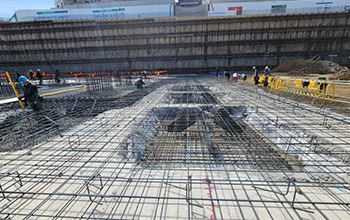

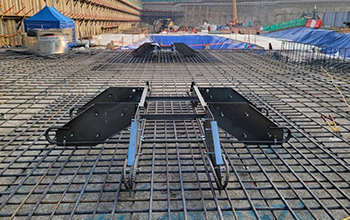

For high-rise mat foundations
Features
- ·Possible to reduce the thickness of the mat foundation in the high-rise zone
- ·Reduction of concrete heat of hydration
- ·Reduction in the depth of excavation and earth‑retaining walls
- ·Significant effect on shortening the construction period
- ·Reduction of complaints
- ·Improvement of PQ score through application of new technology
For mat foundations, especially in rock areas, the cost‑reduction effect and the shortening of the construction period are maximized
Installation Process

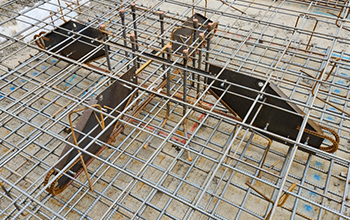

Apartment Parking Lot Foundation Reinforcement Installation Process
-
1. Transportation and Unloading -
2. Hoisting (Lifting) -
3. Installation -

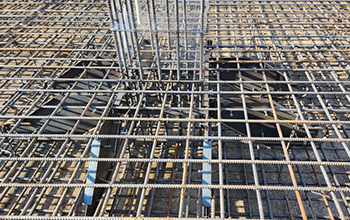

4. Column Rebar Placement

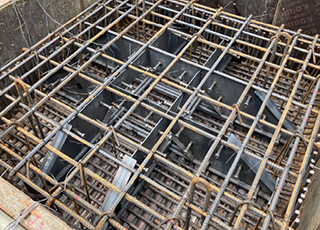

High-Rise Building Foundation Reinforcement Installation Process
-
1. Transportation and Unloading -
2. On-site Assembly -
3. Hoisting and Position Adjustment -
4. Column Rebar Placement
Top-Down Construction Foundation Reinforcement Installation Process
-
1. Wheel Installation and Position Selection -
2. Moving and Securing the Assembly Position -
3. Fastening the Column and Lower Tie Bolts -
4. Placement on Supports After Assembly
Performance Record / Track Record
- ·Applied to the SK Hynix Site and the Samsung Semiconductor Site, in addition to approximately 340 other sites.
| Constructor | Project | Application Year |
| Daerasoo Construction | Dongducheon Saengyeon-dong mixed-use building | 2025 |
| KCC Construction | Office facility at 279 Seongsu-dong 2-ga | 2025 |
| SK Ecoplant | SK Hynix Y-PJT | 2025 |
| Gyeryong Construction | Busan BGF Retail Logistics Center New Construction Project | 2025 |
| Lotte Construction | Dangsan-dong 6-ga residential-commercial complex construction project | 2025 |
| Kolon Global | Korean Air Incheon Unbuk New Engine Maintenance Plant | 2025 |
| Hyundai Engineering & Construction | Banpo Public Housing Complex 1 underground parking lot | 2025 |
| Hyundai Engineering & Construction | Banpo Public Housing Complex 1st Complex | 2025 |
| Samsung C&T | Dogok Samho Apartment Housing Reconstruction Project | 2025 |
| Daerasoo Construction | Jeonju Geumam-dong residential-commercial complex construction project | 2025 |
| POSCO E&C | Busan Dangri Seunghak Apartment Complex | 2025 |
| POSCO E&C | Busan Eomgung District 3 | 2025 |
| Hyundai Engineering & Construction | Daegu Sincheon-dong residential complex | 2025 |
| KR Industry | Anseong Hyeonmae-ri CDC Logistics Center | 2025 |
| Dongbu Construction | Incheon Sorae District 4BL-1L Office Facility | 2025 |
| Samsung C&T | Pyeongtaek P5 | 2025 |
| Jai C&A | CJ ENM Hanam M Center new construction project | 2025 |
| POSCO E&C | The Sharp, Geumjeong, Busan | 2025 |
| Gilbok Construction | Hanyang University Engineering Building 4 | 2025 |
| TDA | New construction of urban residential housing in Bangbae-dong | 2025 |
