Continuous Safety Bar-chair
Abstract
- Thin foundation reinforcement support structure addressing issues of traditional bar-chair installation based on prior worker experience
-
- ·Applicable to thin foundations with a thickness of 250mm to 500mm, improving constructability and reducing costs.
- ·Long continuous truss shape that maintains its form without tipping over, ensuring safety and workability.
- ·Can be installed in long continuous sections at once, enhancing work efficiency.
Feature

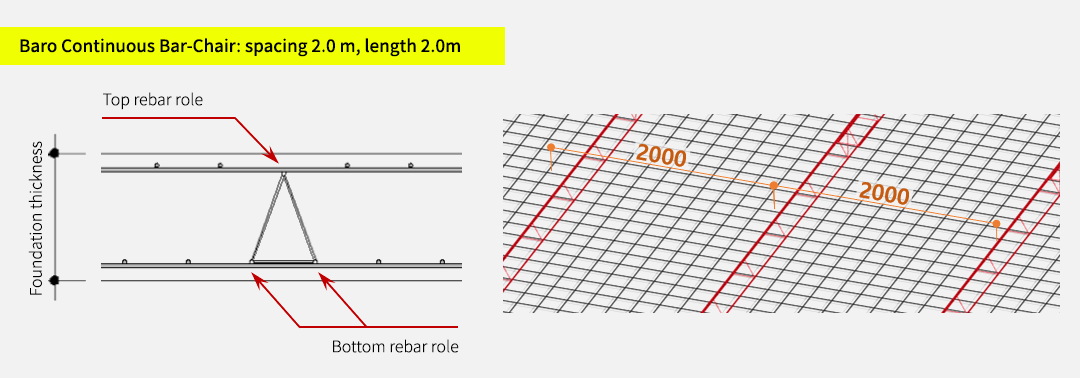

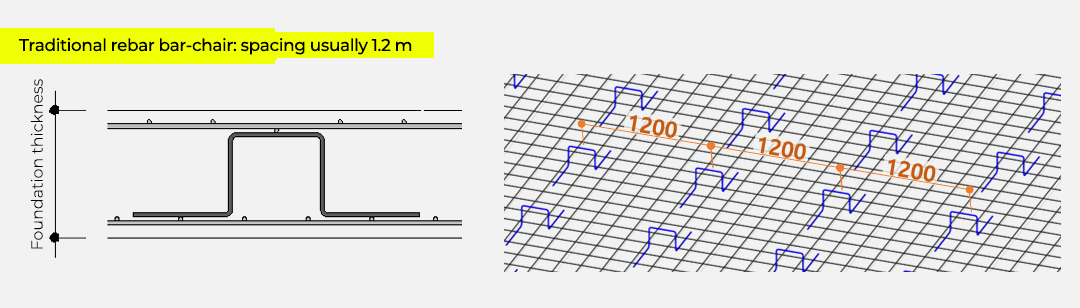

- ·Based on structural safety, allows wider spacing compared to traditional bar-chairs
- ·The body of the continuous bar-chair itself functions as both lower and upper reinforcement.
- ·Installation speed : approximately 3 times faster than traditional bar-chairs.
- ·Labor requirement : about 40% of that required for traditional bar-chairs.
- ·Cost efficiency : approximately 90% of that of traditional bar-chairs.

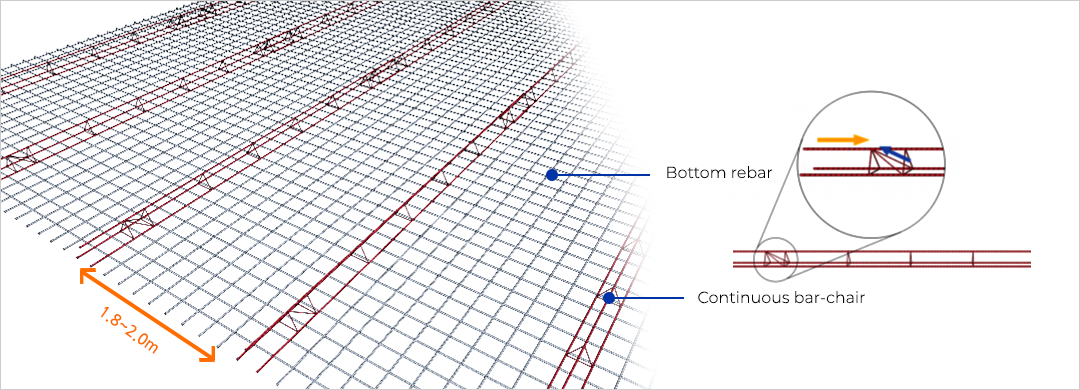

Construction image
Project
| Constructor | Project | Mat thickness (mm) |
| Lotte E&C | Osan Yangsan-dong Apartment Development Project | 300 |
| POSCO E&C | POSCO Geumjeong The Sharp | 300 |
| Lotte E&C | Ansan Jungang Jugong District 5-2 Housing Reconstruction and Maintenance Project | 300 |
